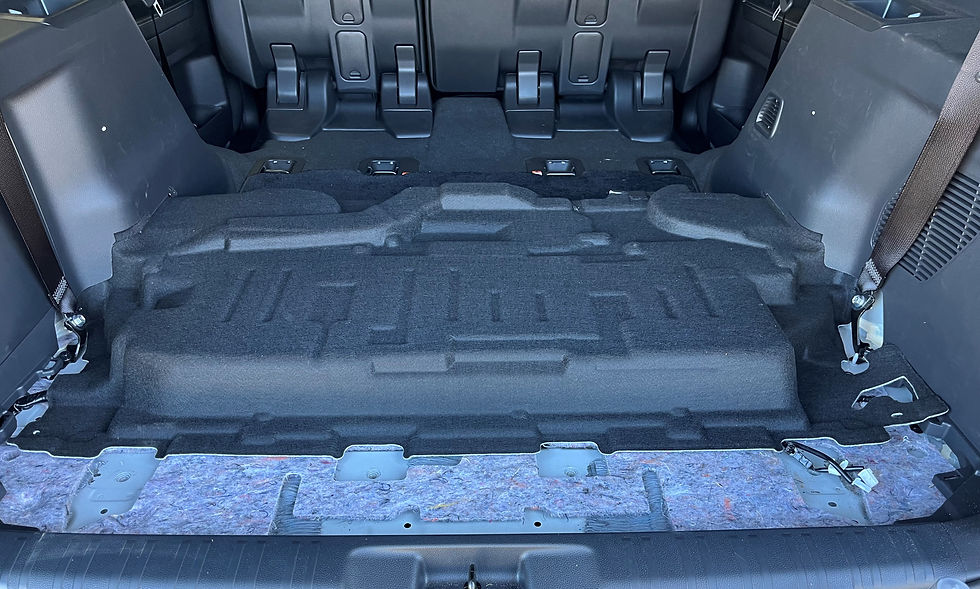

The JBA 250 series slimline battery tray offers a sleek, factory fit option for mounting a second battery in the rear cargo area of your vehicle. The battery tray does not require any modificacations of the Toyota 48V system or battery and suits the Revolution 100A slim line battery.

At this stage, the only battery on the market we can find that would fit the mounting location is the Revolution battery (which is a brilliant battery and suits this application perfectly). Every other battery was either too large or required modifications to the Toyota system.

JBA also offer an optional DCDC mounting bracket that sits in the side pocket of the rear quarter panel if desired. The DCDC mounting bracket is made from aluminium enabling easy modification to run and conceal wiring and mount other accessories such as fuse holders and anderson plugs etc. JBA offer this bracket sold seperately or as part of a kit with the battery tray (JBA-BT422F-KIT1).

Optional accessories fitted to the DCDC bracket shown are suggestions only for demonstration purposes and not included with the kit.

Key product information
Made from 2mm powdercoated steel.
Tested and rated to ADR3/04 ensuring product safety.
Picks up on all original mounting locations requiring no drilling.
Does not require any modifications to the Toyota 48V system or battery.
100% Australian designed and manufactured

Important Fitting notes
Suits all models and variants (5 and 7 seat)
Compatible for installation with JBA compressor mounting brackets
DCDC mounting bracket comes with predrilled holes to suit Redarc BCDC and TJM/Projecta, can easily be modified to suit other chargers.

Suggested Fit Times
Preparation and mounting of battery tray                                              30 mins
Preparation and mounting of DCDC bracket (if required)                30 mins
Removal and refitment of seat and interior panels                             60-75 mins
Removal and re-fit of drawer system (if required)                                60-90 mins
Electrical wiring and fitting of outlets/accessories*                            90+ mins
* wiring time will vary considerably depending on individual setup.

Fitting Instructions
JBA-BT422F Fitting Instructions V1
