IP AUSTRALIA DESIGN REGISTRATION NUMBER 202519247

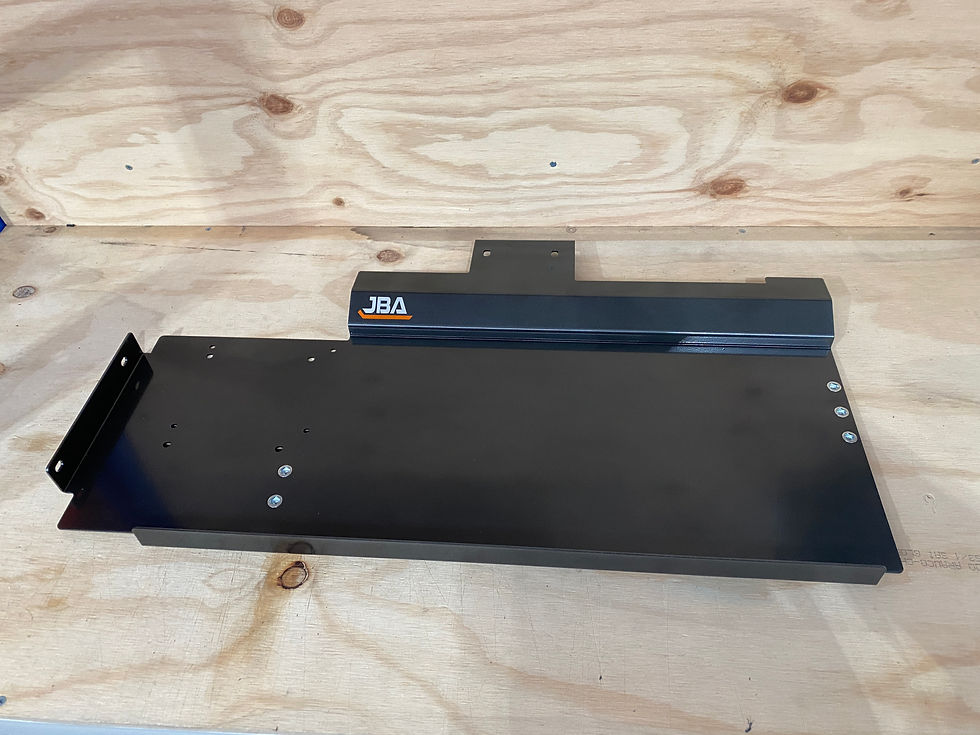

The JBA Y62 Patrol 02/13+ slimline battery tray offers a sleek, factory fit option for mounting a second battery under the rear floor section. This battery tray option is perfect for applications where the 3rd row of seats can be retained and no drawer system is installed.

The JBA tray is specifically designed to suit the Revolution 100A slim line battery which enables the perfect fit in this location. The battery tray suits all makes and models and enables the rear jack and tyre brace to stay in its standard position

The JBA tray enables fitment of a DCDC charger as standard and an optional fuse mounting bracket if required.  The JBA fuse mount comes with pre-drilled provisions for 4 x ANS-H type midi fuse holders (fuse holders not included).

Optional accessories including fuses/anderson plug, fuses and compressor outlets fitted are suggestions only for demonstration purposes and not included with the kit.

Key product information
Battery Tray Made from 2mm powdercoated steel.
Tested and rated to ADR3/04 ensuring product safety.
100% Australian designed and manufactured

Important Fitting notes
Suits all models and variants
Does not require relocation of jack or tyre brace

Suggested Fit Times
Preparation and mounting of battery tray                                              60-90 mins
Vehicle prepertaion                                                                                          45-60 mins
Preparation and mounting of DCDC bracket (if required)                30-45 mins
Electrical wiring and fitting of outlets/accessories*                            90+ mins
* wiring time will vary considerably depending on individual setup.

Fitting Instructions
JBA-BT405B Fitting Instructions V1
