The JBA Next Gen Ranger Dual Cab 06/22+ slimline battery tray offers a sleek, factory fit option for mounting a second battery behind the second row of seats in your Dual Cab. The battery tray suits all makes and models including Subwoofer models and Raptor and is designed to suit the Revolution 100A slim line battery.

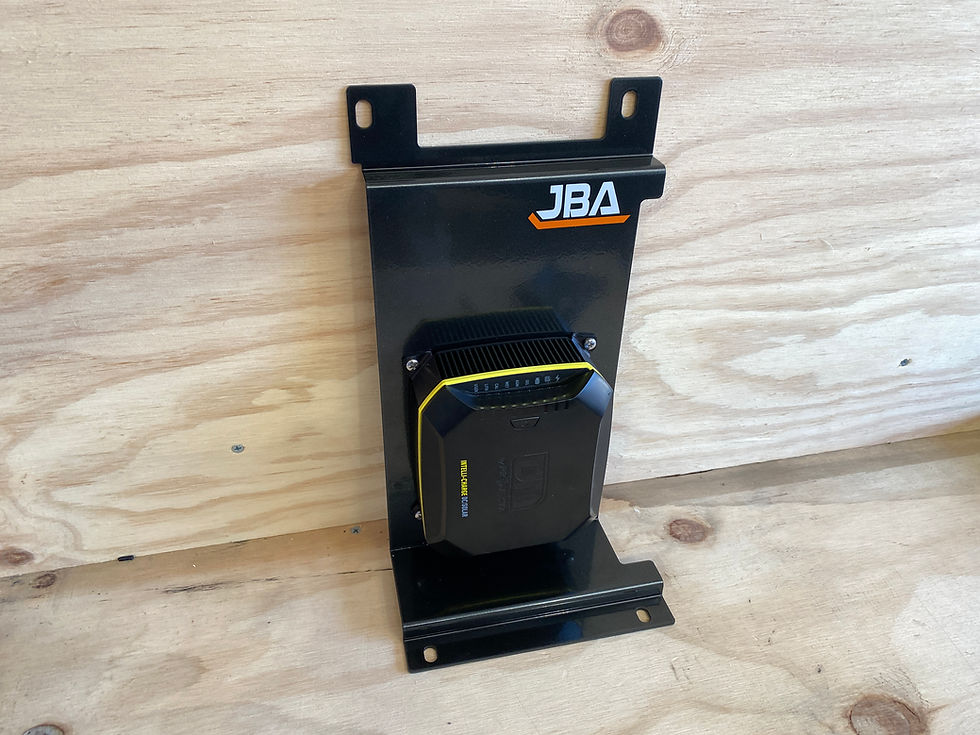

JBA also offer an optional DCDC and fuse mounting brackets. For vehciles with no subwoofer, the optional DCDC mounting bracket is mounted next to the battery tray behind the seat. For vehicles fitted with the subwoofer or for installs where folding down the back seat is not always possible (for example child seats), JBA offer a DCDC mounting bracket under the seat.

The DCDC mounting bracket also comes pre-drilled with mounting points to suit the following chargers
TJM/Projecta 25A
Redarc BCDC1225
Redarc Alpha 50A with provision for shunt
JBA also offer pre drilled holes for midi fuse mounting bracket with pre-drilled provision for 4 x ANS-H type midi fuse holders (fuse holders not included) and the bracket can be easily modified to accomodate other types of fuses or accessories as required.

Optional accessories fitted to the DCDC bracket shown are suggestions only for demonstration purposes and not included with the kit.

Key product information
Battery Tray Made from 2mm powdercoated steel.
Tested and rated to ADR3/04 ensuring product safety.
JBA do not pick up on any child restratint mounting points which will overload the point and intefere with ADR34 ratings.
100% Australian designed and manufactured

Important Fitting notes
Suits all models and variants including subwoofer models (inc Raptor).
Compatible with JBA compressor mounting brackets.
DCDC mounting bracket choice between behind or under seat (behind seat option not available for models with subwoofer).
Jack will need to be relocated (JBA offer optional relocation bracket).
Picks up on all original floor mounting locations and additional rivnuts installed on rear wall.
Installation will require M6 tap

Suggested Fit Times
Preparation and mounting of battery tray                                              45 mins
Preparation and mounting of DCDC bracket (if required)                30-45 mins
Electrical wiring and fitting of outlets/accessories*                            90+ mins
* wiring time will vary considerably depending on individual setup.

Fitting Instructions
JBA-BT452B Fitting Instructions V1
