IP AUSTRALIA DESIGN REGISTRATION NUMBER 202519250

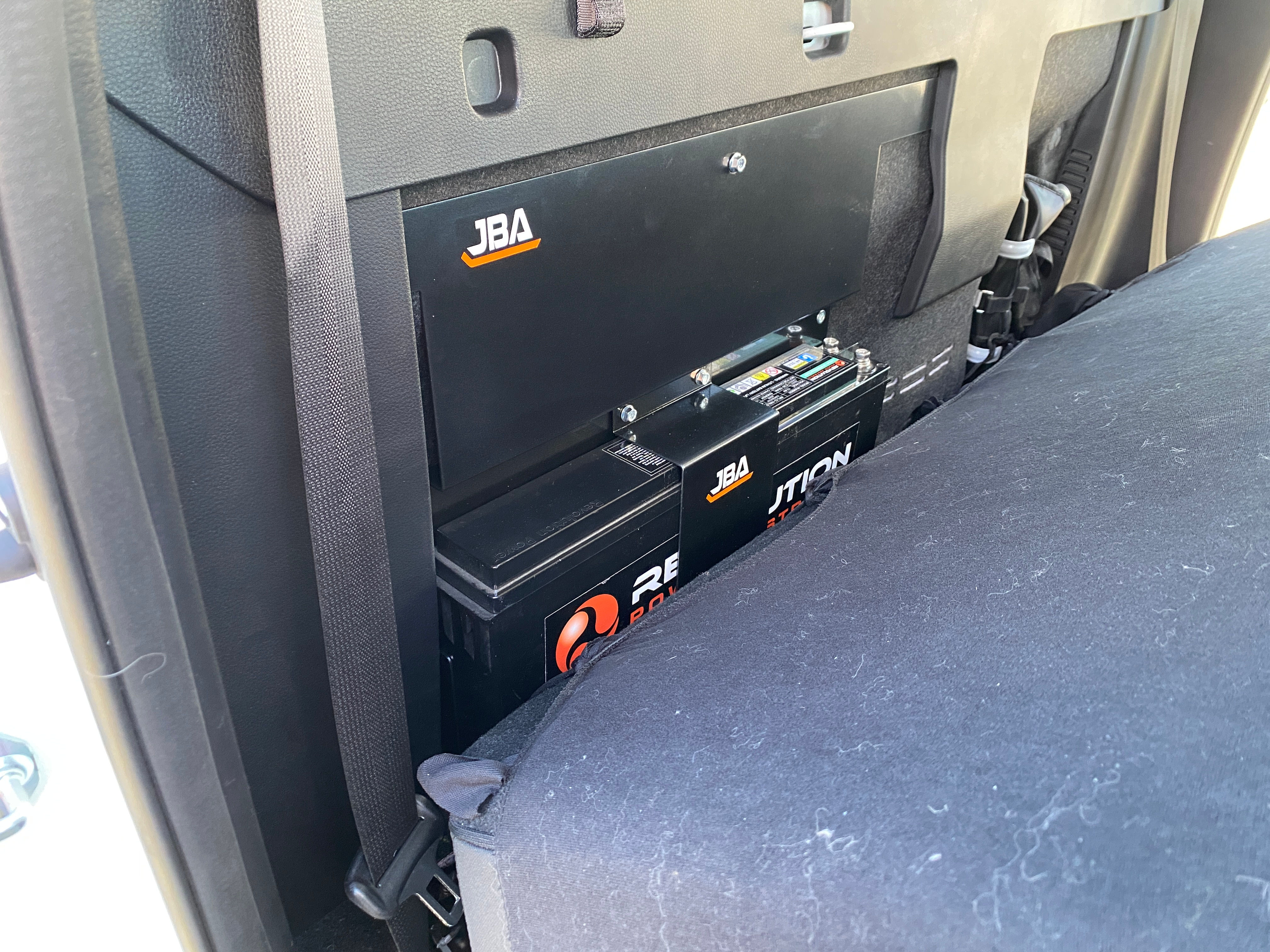

The JBA D-Max/BT50 slimline battery tray offers a sleek, factory fit option for mounting a second battery behind the second row of seats in your Dual Cab. The battery tray picks up on factory mounting locations and suits the Revolution 100A slim line battery.

JBA also offer an optional DCDC mounting bracket that sits beside the battery tray panel if desired. The DCDC mounting bracket is made from 2.5mm aluminium enabling easy modification if required and has pre-drilled mounting points to suit the following chargers
TJM/Projecta 25A
Redarc BCDC1225
Redarc Alpha 50A with provision for shunt
JBA also have pre-drilled provision for 4 x Midi fuse holders and the bracket can be easily modified to accomodate other types of fuses or accessories as required. This DCDC mounting bracket can only be installed with the JBA battery tray and is not available as a standalone product.

Optional accessories fitted to the DCDC bracket shown are suggestions only for demonstration purposes and not included with the kit.

Key product information
Battery Tray Made from 2mm powdercoated steel.
Tested and rated to ADR3/04 ensuring product safety.
Picks up on all original mounting locations.
100% Australian designed and manufactured

Important Fitting notes
Suits all models and variants.

Suggested Fit Times
Preparation and mounting of battery tray                                              45 mins
Preparation and mounting of DCDC bracket (if required)                30 mins
Removal and refitment of seat and interior panels                             45 mins
Electrical wiring and fitting of outlets/accessories*                            90+ mins
* wiring time will vary considerably depending on individual setup.

Fitting Instructions
JBA-BT468B Fitting Instructions V1
